William E. Porter (“Porter, Preparer”), Microscopist (1832 - 1909)

by Brian Stevenson, Lexington, Kentucky, USA

William Edward Porter was a chemist (pharmacist) by trade, who also produced and sold a fair number of microscope slides during the 1860s-1870s. Brian Bracegirdle, in “Microscopical Mounts and Mounters,” commented that Porter’s mounts tend to be chemical in nature, a likely consequence of Porter’s main occupation. Three Porter slides are illustrated in that book: 30-G, 30-H and 52-S. However, one error in Bracegirdle’s excellent reference was the misidentification of the cover paper used in Porter slide 30-G as being that of J.T. Norman, with a suggestion that Porter did not produce the mounts he sold. “Microscopical Mounts and Mounters” slide 30-G actually has papers that were originally made for Henry Webb, not Norman. A similar Porter slide is shown below in Figure 1A, alongside a Webb slide that used the same patterned paper (Fig. 1B). Note that Henry Webb’s paper includes the lithographed initials “H” and “W” above and below the specimen. Someone, presumably William Porter, crossed out those initials on the Porter slide. Slide 30-G in “Microscopical Mounts and Mounters” contains similar markings. Figure 1C and D illustrate another pair of Porter and Webb slides, using a different pattern of Webb’s paper. The Porter slide in Fig. 1C again has the “H” and “W” initials blacked out. It is not certain whether Porter made these slides, or applied his own labels to slides made by Webb. However, William Porter’s use of the term “preparer” to describe himself, and the tendency of his slides to contain chemical specimens, suggests that Porter actually did produce these microscope slides.

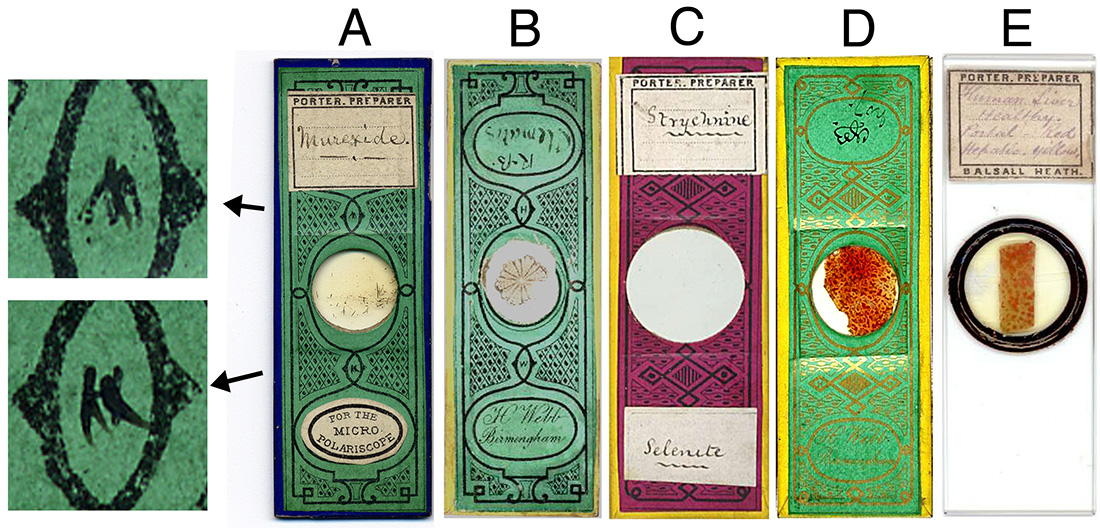

Figure 1. Representative slides by William Edward Porter, and comparisons with Henry Webb slides. (A) A mount of the chemical murexide, for viewing with polarized light. To the left are enlargements of the crossed-out lithographed letters “H” and “W”, contained within the ovals above and below the specimen. The absence of Porter’s Balsall Heath address indicates that this slide was sold after 1871 (B) The same type of paper as A, on a slide by Henry Webb. (C) A Porter mount of the chemical strychnine, using a different type of Webb’s papering. The lithographed “H” and “W” initials within diamond patterns have been covered over with dots of black ink. Dates from after 1871. (D) The same type of paper as in C, as used by Webb. (E) An unpapered mount by Porter, of “human liver, healthy”, with the portal vein stained red and the hepatic vein yellow. The Balsall Heath address indicates that this slide was sold at some time between 1866 and 1874.

William Porter and Henry Webb were neighbors for less than a year in Balsall Heath, in the Kings Norton district on the outskirts of Birmingham. Porter lived on Mary Street, while Webb lived on the adjacent George Street. The Porter family moved to Balsall Heath during or shortly after 1866, as son William was born during early 1866 in Hackney, Middlesex, and the 1867 Post Office directory of the Birmingham area listed Porter as a chemist on Mary St. Henry Webb committed suicide during December of 1866. A reasonable explanation for Porter’s use of Webb’s papers is that he may have purchased Webb’s supplies after the latter’s death.

Note that the label on the slide shown in Figure 1E lists Porter’s address in Balsall Heath, while those in Figures 1A and C had the address removed. This suggests that slides 1A and C date from after Porter moved away from Balsall Heath. Two of the slides shown in “Microscopical Mounts and Mounters” have similarly shorn labels (slides 30-G and 30-H). Porter’s daughter Ada was born during the spring of 1871 in Balsall Heath, while daughter Jessie was born in the spring of 1874 in St. Johns (a suburb of Worcester). Thus, we can date the slide shown in Fig. 1E as having been sold between 1866 and 1874, and the slides in Fig. 1A and C as being from after 1871. It is intriguing that the known Porter slides which used Webb’s paper all date from after Porter’s move away from Balsall Heath, which occurred at least 4 ½ years after Henry Webb’s death. The Balsall Heath slides from Porter, on the other hand, are without covering papers. These observations further support the conclusion that William Porter actually did produce his slides.

William Edward Porter was born during October, 1832, in Broadwas, Worcestershire, the eldest child of William and Mary Porter. William the father was a land surveyor. By the time of the 1861 census, William the son was working as an assistant in the Society of Apothecaries. He then lived with his younger brother, Robert, and family in Dudley, Worcestershire.

During late 1864, William married Mary Davies in Droitwich, Worcestershire. The following two years evidently involved some significant moves, since their son William was born in Middlesex. By 1867, the Porter family was living in Balsall Heath, Worcestershire.

Other than the existence of microscope slides bearing his name, the only known record of William Porter’s involvement in microscopy came from his time in Balsall Heath. The March 1, 1868 issue of “Hardwicke’s Science-Gossip” bore the following advertisement: “Ligamentum nuchae Giraffe (mounted) for other good mounted objects. — W. E. Porter, Mary Street, Balsall Heath, Birmingham.” That tissue is the strong ligament which runs from the skull along the back of the neck, helping to hold the head erect. This was apparently a fascinating tissue for 19th century microscopists. According to Lionel Smith Beale: “The fibres of the ligamentum nuchae of the giraffe are very large, and remarkable for exhibiting at short intervals transverse markings, which were first noticed by Professor Quekett. These markings are situated in the internal part of the fibre, and do not usually extend quite to its outer surface. They probably depend on contraction of the oldest part of the formed material taking place as it gets dry and condensed after its formation is completed. Unfortunately, I have not had an opportunity of obtaining a portion of fresh ligamentum nuchae of a giraffe, so that my specimens are defective in not exhibiting the bioplasm of this particular form of yellow elastic tissue.” Exactly how a chemist in Worcestershire obtained ligament from a giraffe is not known. Likewise, the human liver section shown in Figure 1C, above. It is possible that Porter obtained those specimens from Webb’s estate, as Henry Webb was a nationally-known maker of microscope slides who exhibited in many major international expositions, and undoubtedly had access to exotica.

As mentioned above, the Porters had left Balsall Heath for Worcester by 1874. The 1879 “Year-Book of Pharmacy” lists among its members W.E. Porter, of 17 Tybridge St., Worcester. The 1881 England census places our William Porter at 16 Tybridge St., and being employed as an analytical chemist. The “Porter Preparer” slides that had the “Balsall Heath” address removed were undoubtedly sold after his move away from Balsall Heath. It is not known how much longer William Porter continued making and selling microscope slides.

William Porter’s first wife, Mary, died between 1881 and 1891, possibly during 1885. He then re-married, to a much younger woman who was also named Mary. In 1891, William and family were living “on their own means” in Leigh, Worcestershire. The 1901 census found William and his wife living in Malvern Link, Worcestershire, with William recorded as being a retired analytical chemist. Porter died during late 1909 in Upton upon Severn, Worcestershire, at the age of 77.

Comments will be welcomed by the author.


My thanks to Marie Canavan for sharing biographical information on William Porter and his family, and Brian Davidson for sharing images from his collection.


Beale, Lionel Smith, 1872, “Bioplasm”, page 116, J. and A. Churchill, London. http://books.google.com/books?id=iH4BWf5stf0C

Bracegirdle, Brian, 1998, “Microscopical Mounts and Mounters”, Quekett Microscopical Club, London.

England birth, marriage, death and census records, accessed through http://ancestry.co.uk

Hardwicke’s Science-Gossip, 1868, vol 4, March 1, page 72. http://www.archive.org/details/hardwickesscienc04cook

Post Office Directory of Birmingham, 1867, pages 72 and 247. Accessed through http://www.historicaldirectories.org/hd

Stevenson, Brian, 2009, Henry Webb, microscopist (ca. 1816-1866), Micscape, issue 164, June 2009. http://www.microscopy-uk.org.uk/mag/artjun09/bs-webb.html

Year-Book of Pharmacy, 1879, page 362. http://www.archive.org/details/yearbookofpharma1879londuoft

Year-Book of Pharmacy, 1885, page 351. http://www.archive.org/details/yearbookofpharma1885londuoft
