Comparing two pairs of Zeiss objectives - notes on the effect of delamination

by David Walker, UK

 1) Comparing a badly delaminated 40x NA0.6-1.0 planapo oil with a pristine near equivalent.

2) Comparing a delaminated and damaged 25x NA0.65 planapo with a 25x NA0.45 planachro.


Two examples of essentially the same Zeiss objective, the 40x NA0.6-1.0 planapo oil immersion, passed through my brother Ian and my hands over the past year. But they had one major difference, one was extensively delaminated and the other was in excellent condition.

The tendency of some Zeiss microscope optics of a certain vintage to delaminate will be very familiar to users and purchasers of Zeiss kit. I'm not a Zeiss aficionado, just a user of the optics, so can't offer any insight myself into the causes of this very well discussed phenomenom. See links below for discussions of delamination.

My own interest in delamination was very much a practical one and curiosity; here was an opportunity to see how the two objectives compared in performance with typical brightfield subjects both visually and for image capture with my Nikon D50 digital SLR. Given the often large price difference between a pristine objective and one with declared extensive delamination it was also interesting to see if the quality loss could be tolerated if I was purchasing the cheaper objective.

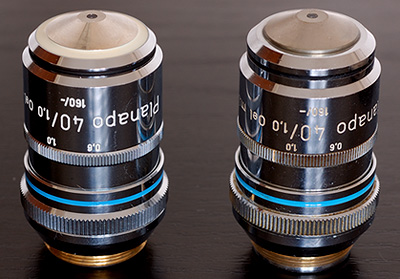

The two objectives being compared, (serial nos. 5195400 and 5022152) the righthand one has the delamination. They are not totally identical in external design; the lefthand example has a white ring on front, the 'lock up' feature and design differences at objective rear so possible there may be internal design differences (comments from Zeiss users welcome); but same spec in mag and NA so as close as the author is likely to have as an opportunity to assess the effect of delamination.


Views of the back of the objective sequentially focussing down. Delamination was occurring on three different optical planes, the first two were major and across central field, the third marked was slight edge delamination not clearly shown.

Note on testing methods for delamination:

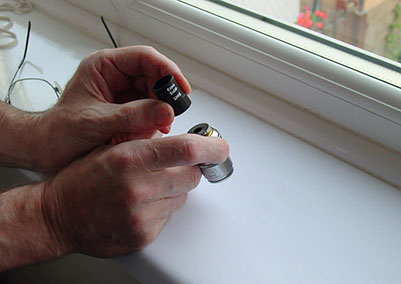

1) A quick and easy method for checking an objective that I've found useful is shown in the image right below. The objective is held close to and pointed at a well illuminated white paper sheet and the back of the objective inspected with a good quality 5x-10x hand lens by focussing carefully from front element through to back element—complex objectives could have a number of potentially delaminating surfaces. Apart from very minor edge defects this method should pick up any significant delamination. An unstructured illuminated surface is required as easy to overlook faults if the objective pointed at e.g. a cloudy sky. This method could be used if in a dealer's showroom or at a club sale if more extensive means of checking aren't available.

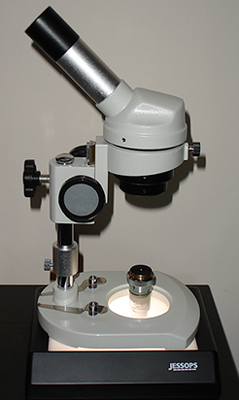

2) A low power stereo microscope with good focus range is a more rigorous way of inspecting objectives. A simple low power (ca. 20x) dissecting microscope as shown above left with bottom illumination, in this case by a light box, will also suffice. If the objective has a flush or protruding front element, great care needs to be taken if placing the objective on a surface. To be safe, it's quite easy to support the objective by hand just above the surface while inspecting it or annular disc support could be devised.

3) A phase telescope or microscope with focussing Bertrand lens can be used with objective focussed on a blank area of slide with condenser iris fully open and correctly focussed to ensure whole aperture of objective is illuminated. Ensure the inspection method can focus throughout the 'optical depth' of the objective as this isn't always the case. My own preference to check for delamination is to always to use method 1 first, then inspect the damage more carefully by 2) or 3).


Notes on digital imaging:
Microscope - Zeiss Photomicroscope III, achromatic-aplanatic condenser. Camera - Nikon D50 DSLR using monocular tube. Parallax focusing by focussing an eyepiece in bino' head to match camera focus. 'Projection' eyepiece - Zeiss Kpl 10x W on 5mm collar. Flash used exclusively as described in this article. RAW images. Resized using Fred Miranda 'WP Pro' v1.1' plug-in for Photoshop (better resizing algorithm than Photoshop's), 'low sharpening' setting used in plug-in to compensate for softening of an extensive resize. Saved as low compression jpegs. Further work-up as described below for each image sequence.


Comparing the badly delaminated 40x NA 0.6-1.0 planapo oil with a pristine near equivalent.

Diatom - Pleurosigma angulatum: (Klaus Kemp 'Test plate 8 forms'. Hyrax mountant.)
This diatom species is a classic test subject and particularly useful for 40x objectives. A good achromatic 40x NA0.65 can resolve the frustule detail in brightfield but benefits from contrast enhancement like oblique. A high NA 40x planapo should readily resolve detail in brightfield but the image quality of this low contrast subject can suffer if there's any problems.

The 'good' 40x NA1.0 planapo objective in brightfield. Resized crop of 'out of camera' image.


The 'delaminated' 40x NA1.0 planapo objective in brightfield. Resized crop of 'out of camera' image with slight tonal balance change to match exposure of image above. This image reflects the visual image, i.e. noticeably lower contrast and a less neutral 'muddy' hue but the resolution is essentially still there.


The 'delaminated' 40x NA1.0 planapo objective in brightfield. As above except the condenser iris was stopped down more (to ca 60% of field) than for 'good' objective. This brings back the contrast to some extent, as the diatom was readily resolved the resolution didn't suffer unduly.


Histology - rat ileum, iron haematoxylin and eosin, Numount, NBS course slide, prepared by author.

I've never found imaging of histology subjects very easy or satisfying, there's often no sharply delineated features to catch the eye to give an impression of sharpness, but had a go anyway. The damaged planapo again gave lower contrast images but quite acceptable when stopped down a bit. Colour accuracy seemed affected as seen in the images below.

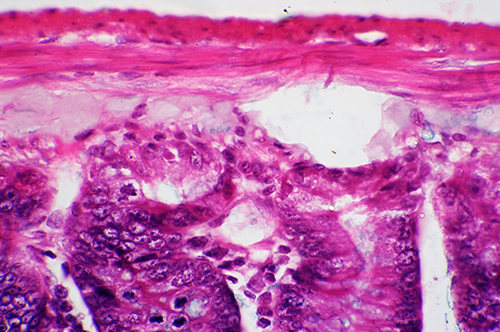

The 'good' 40x NA 1.0 planapo objective in brightfield. Resized crop of 'out of camera' image.
Depth of field is small at this mag.

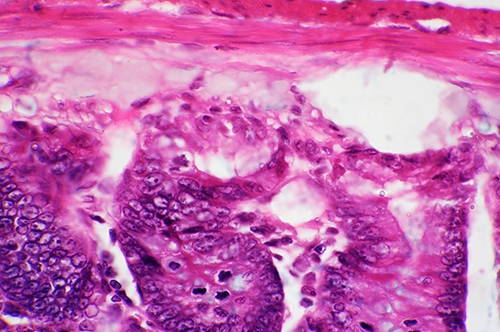

The 'delaminated' 40x NA1.0 planapo objective in brightfield. Resized crop of 'out of camera' image with
tonal balance change to match exposure of image above.


Zeiss 40x NA0.65 planachro, good condition.


Comparing a delaminated and damaged Zeiss 25x NA 0.65 planapo with a Zeiss 25x NA 0.45 planachro

Out of interest two Zeiss 25x objectives were also compared. The Zeiss 25X NA 0.65 planapo I possess has extensive delamination in two optical planes and also the front element is badly cracked. Knowing the optical performance would be impaired, I was interested to see if it still had merits in use cf a Zeiss 25x planachromatic in good condition.

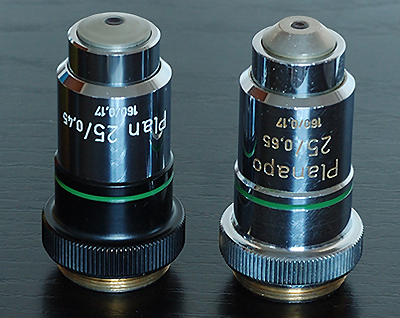

Above: Left - Zeiss 25x NA 0.45 planachro, in good condition; right - Zeiss 25x NA 0.65 planapo, damaged as shown below.


Above - Zeiss 25x NA 0.65 planapo: Left front element, two bad cracks arrowed and edge chipping, the lower crack is worse and deeper than shown in the image above left. Middle and right images of elements from rear; delamination across the field was present in two different optical planes.


Brake fern, T/S rhizome, stained. Biosil slide.
This was a colourful, contrasty slide to assess a typical prepared stained subject. In the images below I have compared the optimised images attained from each objective, using normal image work-up procedures i.e tonal balance adjustment, colour cast removal of white background (if any) and resize. This was a fairer comparison than 'out of camera' images, where exposure differences can overlap objective differences. (My flash gun changes power in factors of two so too big a jump to exactly match exposures. I need some finely graded neutral density filters.)

Visually, the damaged planapo gave noticeably lower contrast and duller images than the planachro and planapo image was not as visually pleasing but still competent. With this sort of subject the higher resolution isn't readily noticed. But as the images below show, the worked up digital images aren't dissimilar. The slight differences are to some extent due to a less than perfect match of tonal balance adjustments.


Zeiss 25x NA0.65 damaged planapo.


 Zeiss 25x NA0.45 planachro in good condition

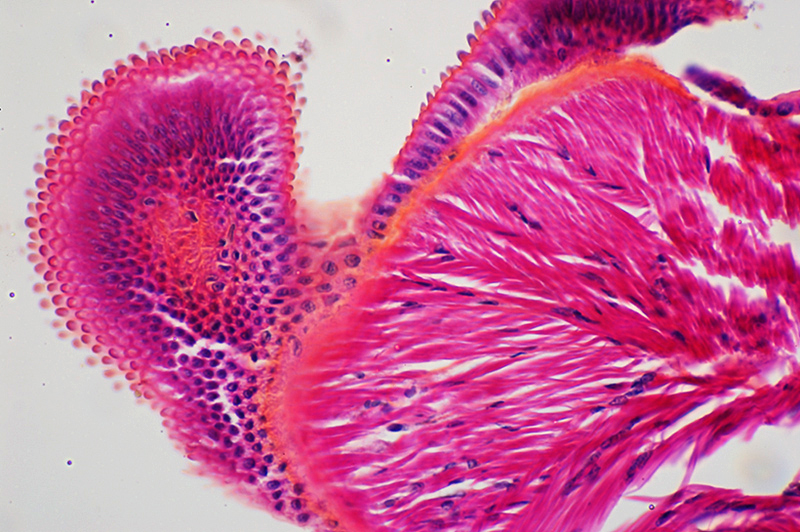

Octopus tentacle suckers, V/S, stained, Biosil slide

As for the stained botany section above, visually the damaged planapo gave a duller less contrasty image but still fine for showing detail and benefited from slightly more stopping down than usual to ca. 60%. After image work up the finer subject differences are less marked although the planachro image looks more 'punchy'. Note that exactly the same tonal balance and focus is tricky so image comparisons can't be too rigorous.

  Zeiss 25x NA0.45 planachro in good condition


Zeiss 25x NA0.65 damaged planapo.


Diatom - Didymosphenia geminata  (Klaus Kemp '100 forms' type slide, mountant Zrax)
This subject was chosen to see if the better resolution of the planapo was still a benefit albeit lower contrast. The planachro does resolve this diatom but the image differences cf the planapo are more noted; the planachro gives the thickening typically seen of lower NA objectives.

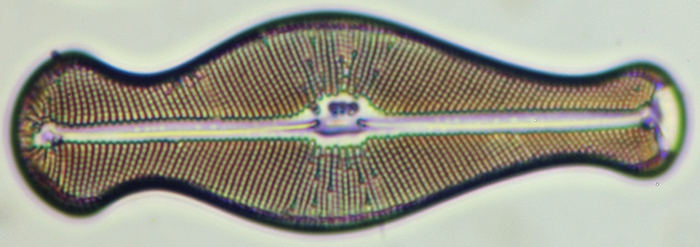

Zeiss 25x NA0.65 damaged planapo.

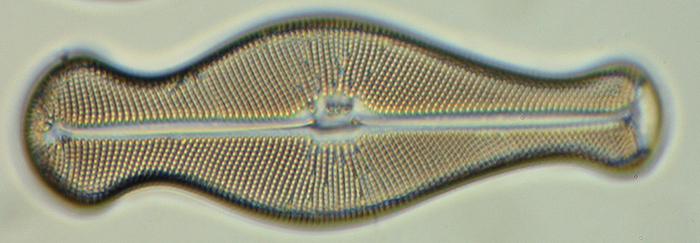

 Zeiss 25x NA0.45 planachro in good condition.




Overall comments:* As expected and as noted by other microscopists (see link 1), the contrast suffers most noticeably in visible brightfield work with the delaminated objectives assessed above. If a planapo is being bought to enjoy the finest visible brightfield image I think a badly damaged one could disappoint especially for subjects with colour, but the above were quite badly damaged and still gave competent images with some stopping down. The two damaged objectives tested though could well have sold for a few tens of pounds cf the £100-200 for a good condition planapo, so if digital imaging was of more interest, the normal image work up with corrections for tonal balance, colour cast etc may give images not far off those for a pristine objective except for the more critical work. A planachro of the same mag could be considerably more expensive than a damaged planapo and the resolution could still exceed the planachro, so worth keeping an eye out for what comes up for sale if the price is right. (*For brightfield work, not for techniques like DIC.)

Comments to the author David Walker are welcomed.


1) The UltraPhot Shop FAQ page - Spike Walker, the noted photomicrographer and Zeiss microscope expert has a valuable summary of potential causes of the delamination of Zeiss microscope optics and its consequences. (Towards bottom of web page link given.)

2) Yahoo 'Real Microscopy' forum - discussions from 'delamination' keyword search, where a number of microscopists shared their views and experiences of objective delamination.

3) So a scratch ruins an objective?? A surprising revelation gleaned from a chance meeting with an abused optic - Paul James shows how an objective can have a surprising amount of visible cracks and scratches on front element and still give reasonable images.


With thanks to Klaus Kemp of for making and supplying such excellent diatom test and type slides and to John Wells, Biosil for other prepared slides.
