Radiolarian shells:
three small projects in digital imaging
for microscopists

by Martin Mach, Munich, Germany


This article includes two avi format video clips. Click here for an animated gif
version if your computer doesn't support avi.



Radiolaria have always been a fascinating microscopic subject1,2,3. Some part of the most important historical literature and very good historical illustrations can be downloaded immediately and without costs at the website of Kurt Stueber4. There are also several fine papers in MICSCAPE, by Brian Darnton, Richard Howey, Mike Samworth ...

It took a long time for scientists to get a basic understanding of living radiolaria, e.g. how they are able to stretch and to retract their thin linear ray-form plasmopodia5.

Unhappily most of us will be confined to look at the dead relics of these splendid organisms which are nevertheless of an outstanding beauty and interesting symmetry. This paper shows how to get some additional visual impressions from the fascinating glass like radiolarian skeletons. The techniques which are discussed here might be used for many other objects as well.

Build your own virtual radiolaria exhibition slides

Radiolaria exhibition and circle pattern slides have a long tradition and of course will never be outdated or replaced by electronic gadgets. Nevertheless digital imaging offers the possibility to combine any of your favourite objects — which might reside on different slides at different places — to one gigantic picture.

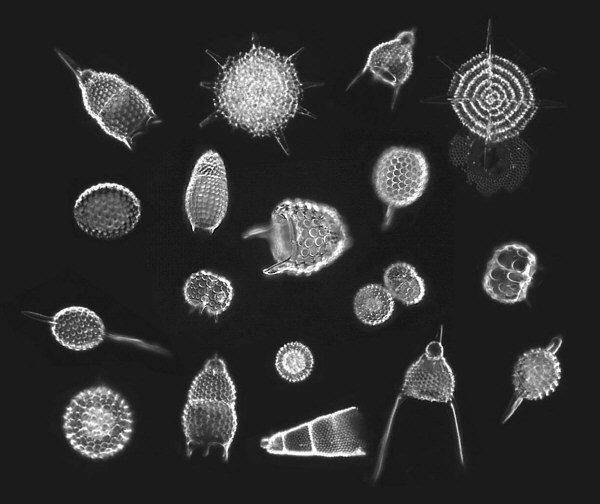

To illustrate this I have chosen a so-called radiolarian strew slide6. There are many beautiful shells on the strew slide which can be photographed one by one at the best individual focusing depth. I have merged 18 of these individual photographs taken with a computer CCD camera7 (see figure below). But this is just an example. You might combine hundreds of objects to a much bigger picture just in the same way.


With standard digital imaging software8 in particular, dark-field9 photographs can be easily combined without seams, as the exact colour of the black background can be measured by means of the software: e.g. a measured R(ed)G(reen)B(lue) background color value 0,2,0 can be set easily to 2,2,2 or 0,0,0 in order to fit into an existing mosaic. On the basis of the measurements you can even adjust photographs which have been taken under slightly different conditions. Just create an empty black picture, adjust the darkness of the background of your other photographs and let them "drop" into the black picture.

It is much more difficult to prepare normal bright-field photographs in order to build a combined bright-field image as the bright background is more susceptible to brightness and colour variations at the edges of the photographs.

Of course, when you start from a strew slide you will not be able to change the orientation of the objects like the diatom (radiolarian) laying artists who are able to arrange their shells in arbitrary orientation by means of guinea pig bristle hairs or extremely fine metal needles. But when working with loose individual objects you might even combine one and the same object with different orientations in one picture !

Focusing into the inner radiolarian spheres

The computer software for this experiment, Dave´s Targa Animator (DTA), is an ingenious $35 shareware utility by David K. Mason. It is ready for testing and downloading from the Internet at

ftp://ftp.povray.org/pub/povray/utilities/dta/dta30.zip

The DTA software enables you to combine a series of image files (e.g. img0001.bmp, img0002.bmp, ....) to an animation. A simple command-line like "dta img*.bmp /FAVI" does the whole job and converts a series of image files to an avi-film. The size of the input pictures may vary within a broad range. The two small, low-quality avi-animations within this article, which were produced by help of DTA, will fit on an ordinary floppy disk. A medium quality 640 x 480 pixel animation in so called FLC10 format might take typically 10 MB of hard disk space depending on the number of frames. DTA offers even more: it is no problem to generate extremely high quality animations e.g. on the basis of classical photographs or photographs from consumer CCD cameras up to 1280x1024 pixels which can be displayed on the computer screen. Just have a try and feel free to give your TV set to the garbage afterwards ...

The following animation example (291kb) documents the process of focusing to the inner sphere of a radiolarian shell. For each of the series of photographs the fine focusing screw of the microscope was moved a little ahead.


Enjoy a microscopic radiolarian "walkaround"

If we were able to scale down ourselves to a height of about 200 microns we might have a closer eye-to-eye look at the radiolarian shells, we might walk around them and perhaps knock carefully on the glass-like network structure. Obviously most of us will not be able to change size that much. But we can instead use the microscope in order to look at a radiolarian shell rotating around an axis roughly perpendicular to the optical axis of the microscope. This will give a similar visual impression as a walkaround (click to see 794kb avi-animation below).

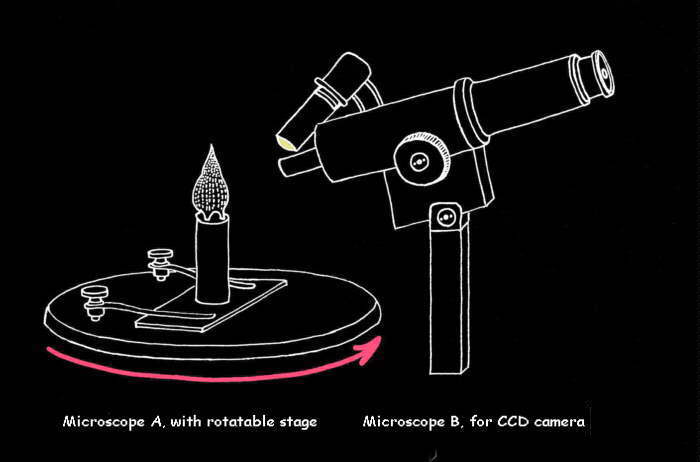

Fig: experimental setup for the "walkaround" photomicrographs

In order to generate the photographs for the animation the radiolarian shell11 was lifted with a thin metal needle and put on the blackened12 top center of a metal cylinder (see figure). Two shells preferred to jump on a nearby carpet instead of posing on the cylinder. I heard a very high "flick"-noise and they were gone. But finally I managed to drop a third one in a Mars-lander-tripod-manner on the metal cylinder. The cylinder had been glued to a slide on a rotatable microscope stage of microscope A. The shell had to be centered around the height axis cleanly by means of the microscope optics of microscope A. The radiolarian shell was then photographed by a simple microscope (microscope B) with an 8x/0.20 achromatic objective. A torch provided incident light13. For each photograph the rotatable stage was turned about 5 degrees further. In the end a series of photographs with continuously changing direction of viewpoint had been created which was fed to the DTA software as described above.

BTW: I am well aware that it is not possible to outdate Ernst Haeckel´s beautiful 19th century drawings of radiolarians. Perhaps one of the reasons why they are so good is that they had just a pencil and no computer at that time ...

Comments to the author
Martin Mach welcomed.


References

1 Short and good introduction to non-living radiolaria e.g. by William B. Carpenter in: The Microscope and its Revelations. 7th ed. P. 770-778. London 1891.

2 Ernst Haeckel: Report on the Radiolaria, collected by H.M.S. Challenger during the years 1873-1876. Zoology 18 (1887).

3 Roger O. Anderson: Radiolaria. Springer-Verlag, New York 1983. (see Richard Howey´s comment in his paper "Mounting Radiolaria Shells", here in MICSCAPE).

4 Kurt Stueber has put an illustrated copy of Ernst Haeckel´s "Die Radiolarien"-book on the web (http://www.mpiz-koeln.mpg.de/~stueber/stueber_library.html). This site contains also the famous colour plates of Haeckel´s "Kunstformen der Natur".

5 Jean Cachon, Monique Cachon and Manfred P. Kage: Radiolarien - Orchideen des Meeres. Bild der Wissenschaft 15 (1978) p. 10 - 47.

6 The strew slide used was bought from Klaus D. Kemp in the United Kingdom. It has a good quality and appropriate density so I was able to find many shells to photograph.

7 PS 39 CCD computer camera by the COMPRO company. It has only 640x480 pixels but a permanent cable link to the computer, so the microscopic image is being monitored and controlled directly on the computer screen.

8 I have used Picture Publisher 4.0 by Micrographx (about $12 in Germany).

9 See MICSCAPE articles about illumination techniques. A 1 cm diameter black paper disc can be placed in the filter-holder to give a good dark-field effect (only for small magnifications).

10 Special FLC animation viewers are available in shareware collections or via CompuServe.

11 Many thanks to Herbert Ostermeier-Reinhard for providing the radiolarian shells.

12 A black paper disc was glued to the top of the cylinder.

13 Possibly polarizing filters might help to improve the image quality.
