An illustration of the light path in darkfield illumination

by Wim van Egmond

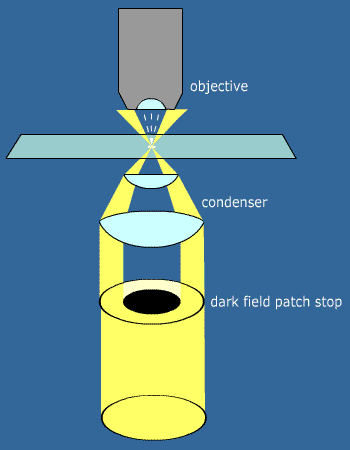

This illustration shows the way the darkfield patch stop blocks the central part of the light beam. The subject on the slide is illuminated while the light rays do not enter the objective. Only the light refracted by the subject enters the objective.

This way the subject will appear light on a dark background.
