Notes on using a Minolta Scan Elite 5400 for scanning microscope slides.

Comparisons with the Nikon Coolscan design.


by David Walker, UK







In an August 2004 article and later image gallery I shared my experiences as a hobbyist on using a secondhand Nikon Coolscan IV for scanning microscope slide specimens. This is a 2900 dpi 35mm film scanner and its design works well for microscope slide scanning with a homemade holder, thus avoiding the need for Nikon's own expensive microscope slide attachment.

I recently had a chance to borrow a colleague's Minolta Scan Elite 5400 dpi 35mm slide scanner and was interested to see how it performed as a microscope slide scannerŚwith nearly twice the resolution as the Coolscan IV it should capture detail much better and has a completely different design to the Coolscan. I couldn't find any information on the Web either by Minolta or others regarding the 5400's potential use as a microscope slide scanner, so hopefully these trials and comparisons may be of interest.

The microscope slide handling comparisons should also apply to Nikon's current model, the Coolscan V as it appears to retain the same 35 mm film handling attachments as the IV. For the hobbyist, a slide scanner's potential for microscope slide scanning is a bonus to its normal film use, although apparently in professional circles, 35 mm film scanners are widely used for microscope slide scanning (see refs. to papers kindly sent by readers in the earlier article).



Physical handling of microscope slides compared

Nikon Coolscan (see August 2004 article for details)


Scanning method: In the manual, Nikon state that the scanner (see title image) can be vertical or horizontal for film scanning. However, it must be vertical for microscope slides if a homemade holder is used, to ensure the slide is horizontal. The slide and holder remains stationary while scanning. Coverslip facing down (shown face up in above images).

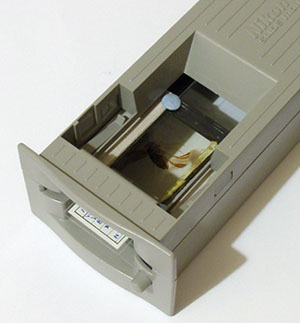

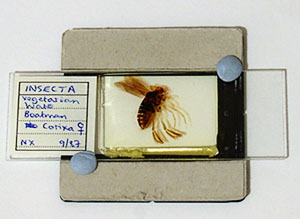

Microscope slide holder used: Nikon's supplied 35 mm slide holder (right above) and a modified 35 mm plastic slide mount (left above) allows safe scanning of microscope slides. Care is required when inserting and removing microscope slides as gravity is partly being used to ensure alignment.

Minolta 5400

In the manual, Minolta advise against using the scanner horizontally when film scanning, so a microscope slide if scanned will be vertical. Visual inspection of the Minolta confirmed that the scanner's optics and mechanics stayed well away from the film plane during film scanning. Microscope slide scanning should therefore be safe as long as a glass slide was mounted in the film plane and securely held so that there was never a possibility of it falling out into the scanner. This is particularly important for the Minolta as, unlike the Coolscan, the 35 mm slide film holder moves during scanning.

After some careful trials the following method seems to the author to be one safe and reliable way of holding microscope slides (but see disclaimer below!).

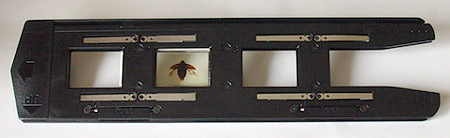

The same modified 35 mm plastic slide film holder was used as for the Coolscan. This was used with the Minolta 35 mm slide film holder shown below right (this is supplied with the scanner).

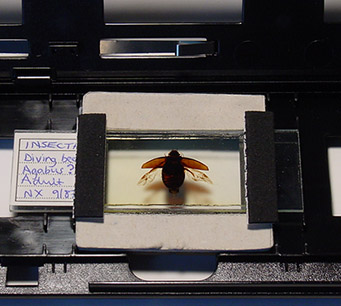

This holder is a hinged design and is secured with two clips. To ensure the microscope slide does not move when the holder is closed, two thin strips of compressible foam were laid across as shown right (black strips). The coverslip was placed face down (to mimic the emulsion face down, recommended in manual).

These strips have to be chosen with care; they need to be just thick enough to hold the slide firm when holder is closed but without putting stress on the glass slide or prevent the slide holder from securely closing. (The author used two strips of 1 mm thick black foam with backing strip intact used for repairing the light tight seals on cameras.)


Slide shows coverslip facing up for image but is face down during scanning, i.e. face left in scanner.

Using the above method, when the 35 mm film holder is closed the microscope slide is very secure, shaking the holder does not move it. So in this respect in the author's opinion, this is a more secure scanning setup for microscope slides than for the Coolscan with homemade holder.

Although not tried, the recess in the 35 mm film holder allows crossed polar imaging to be carried out by temporarily mounting filters either side of the slide, as carried out successfully for the Coolscan IV (see earlier article).



Software: both the Nikon Coolscan and Minolta 5400 have excellent and versatile software. I had a preference for the Minolta software, it seems better integrated than the Nikon's. Click image left below for a view of Minolta's scanning interface. See earlier article for a screen shot of Nikon's.

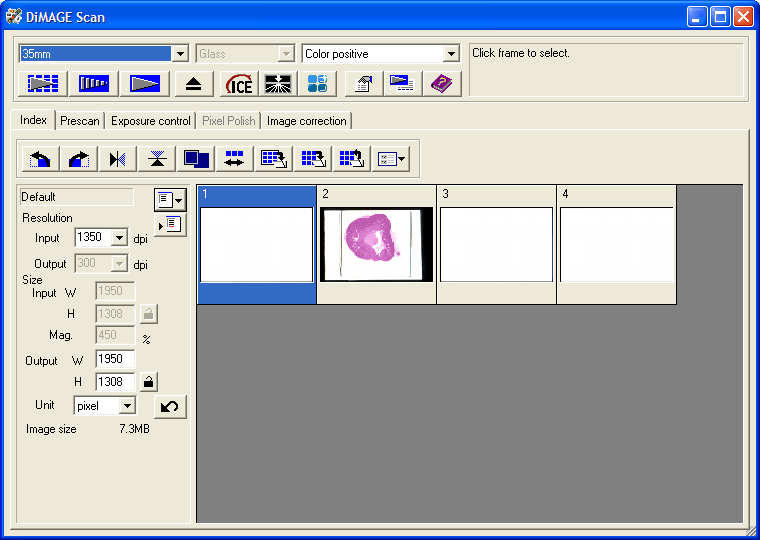

Minolta scanning software interface (Dimage Scan 1.1) and detail of manual focus bar.

Focussing: The Nikon Coolscan's autofocus seems to cope well with most microscope slide subjects. There's also an option to force it to autofocus on a selected area of a slide. The Coolscan's manual focus is awkward to use with no realtime indication of how adjustments affect focus.

The Minolta seemed to work better for microscope slides in manual focus mode which was straightforward as a selected area to focus on is picked on the slide (e.g. a high contrast area) and a real time 'focus meter' shown above is seen, the sliding bar is adjusted until the black bar reaches a maximum in the white box.



Image comparisons
Note: This is more a comparison of increasing the dpi rather than Minolta versus Coolscan as the comparable model to the Minolta is the Coolscan V (4000 dpi with Nikon Scan 4 software) not the Coolscan IV (2900 dpi, Nikon Scan 3.0). The links to masters are unretouched jpegs at Photoshop Elements compression setting 10 to keep file size down.

Crops of master scans shown appear somewhat soft as they are small areas of large images that wouldn't normally be inspected this close on a screen.


Resolution: Motic micrometer slide with lines at 100Ám, 50Ám and 10Ám. Focussing this 1 mm▓ area of a low contrast slide accurately with each scanner was tricky (particularly for the Nikon), so it's not a rigorous test.
Minolta 5400 dpi (far right) and Nikon Coolscan IV 2900 dpi (right) -
full size crops of masters (gifs to avoid compression artefacts). Unretouched apart from contrast increase.

The Minolta's theoretical resolution for 5400dpi is 4.7 Ám but this is for a thin emulsion film. Minolta advises in their manual not to scan glass mounted 35 mm film slides so glass microscope slides won't be ideal scanning subjects. The practical resolution from the test slide is comfortably 10 Ám for the Minolta, perhaps a little better. The Nikon's practical resolution (theoretically 8.8 Ám for 2900dpi) is probably at least double, ca. 20 Ám?


Minolta 5400 - effect of diffuse lighting: The Minolta has a 'Grain dissolver' option to diffuse the light source which is very useful for normal film scanning as this tends to suppress dust marks as well as lessening the effect of film grain.

Click the image right for a resized scan from the Minolta. (900 x 827 pixels, 423 kbytes resized from 2499x2446, 16.4 Mbyte tiff master.)

The third pair of legs from a honey bee (NBS slide) was scanned with and without the diffuser option. A crop from the masters is shown below, with crop area shown right as black box. The scan with diffuser is softer with less contrast, so without diffuser is probably better for most microscope slides. (Although for resized images with some sharpening and contrast enhancement the effect may not be as marked. It does suppress extraneous marks on the slide mount.)

All other images below from the Minolta were scanned without the 'Grain dissolver' option i.e. without the diffuser in place.


Crop from master scans with Minolta 5400. Left - without diffuser, right - with diffuser.


Histological subject:

Kidney section, rabbit, stained with iron haematoxylin and eosin (NBS slide). The section is 18 mm across. The black box shows approx. crop from master shown below for each scanner. Click image right for full master scan 3664x4208 pixels, 6.4 Mbytes) from the Minolta.

The images below show a similar crop from unretouched masters scanned with the Coolscan IV and Minolta respectively (saved as uncompressed jpegs). With default settings, the Nikon gives a more contrasty / saturated result than the Minolta, but extensive menu options can adjust this. (The true colour I'd estimate was in between the two).






Crop from master, Nikon Coolscan IV


Crop from master, Minolta 5400.


Botanical subject: Alder stem, stained T/S (Biosil slide). 6x5 mm subject area.

The black box on image right shows the crop area from masters shown below. Click the image right for the full master scan from the Minolta, (1066x1172 pixels, 1.1 Mbyte). The extra dpi of the Minolta helps here as the section occupies quite a small area of the 35 mm frame so a largish scan is still possible after cropping).


Crops from master scans. Left - Minolta 5400. Right - Nikon Coolscan IV.

Insect subject: Vegetarian water boatman, female (Corixa). NBS slide. 22 x 22 mm subject area. Click image for 4496x4464 pixel master (4.7 Mbytes). The diffuser was in place for this image to suppress dirt in the mount. The effortless perfectly even illumination is one benefit of using a film scanner. Assembling stitched photomicrographs with exactly the same exposure across the montage can be time consuming.




Conclusion: From a short trial the Minolta Dimage Scan Elite 5400 works well for safely scanning microscope slides with a homemade microscope slide holder. For subjects with fine detail such as plant sections and histology the Minolta 5400 reveals more detail than the Coolscan IV 2900 dpi and also gives the opportunity to scan selected smaller areas.

However, a film scanner offers most potential for imaging microscope slides when the subject nearly fills the 35 mm frame area, as imaging subjects this large would require multiple stitching with microscopy. When the subject only partly fills the frame area, the usable pixels even for a 5900 dpi model plummets and microscopy imaging could cover the same area with some limited stitching at a higher quality.

As commented in the earlier article, a modest low power microscope objective outperforms a scanner's resolution capabilities, even for a 5400 dpi model. A LOMO 3.5x NA0.10 planachromatic objective has a theoretical resolution of ca. 3 microns cf the Minolta's 4.7 Ám theoretical and ca. 7-10 Ám in practice. If very low power microscopy imaging was of interest, a 1x NA0.04 planachro compound microscope objective often sells quite cheaply on eBay and have a theoretical resolution of ca. 7 Ám, i.e. comparable imaging to the expensive film scanner at a fraction of the cost. From the author's trials, a 1x objective typically has a horizontal field of view at a 35 mm SLR film plane of 12 x 8 mm (7x eyepiece) so ca. four to six image stitches would give a comparable field of view to the scanner's max. of 36 x 24 mm. The current crop of high megapixel consumer digicams with 'super macro' facilities should also give good imaging.

In professional applications, where convenience and speed of imaging large subjects are important, the benefits of the film scanner are probably more pertinent.



Comments to the author David Walker are welcomed.

Disclaimer: The above information is offered in good faith but neither the author nor website owner accepts any responsibility for damage to a slide scanner for adopting these techniques. It's 'user beware' and any damage would invalidate the maker's guarantee.
